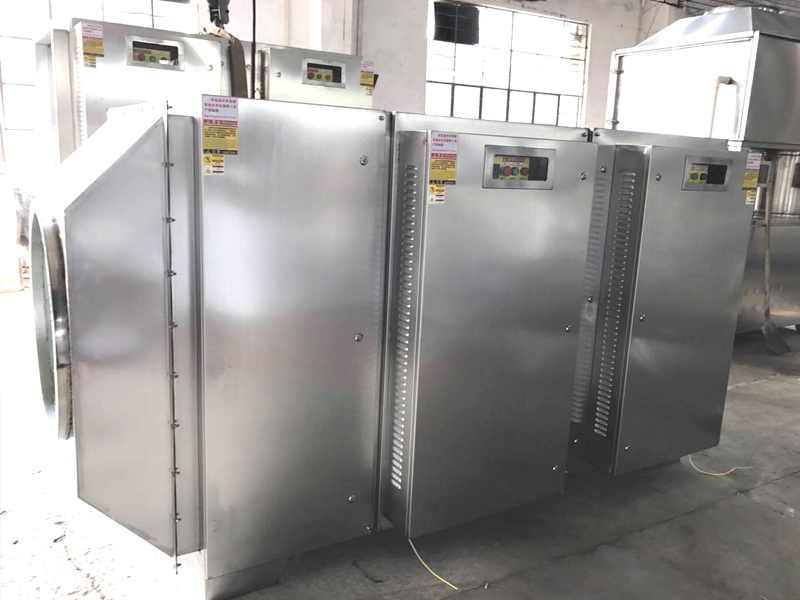

Product Introduction

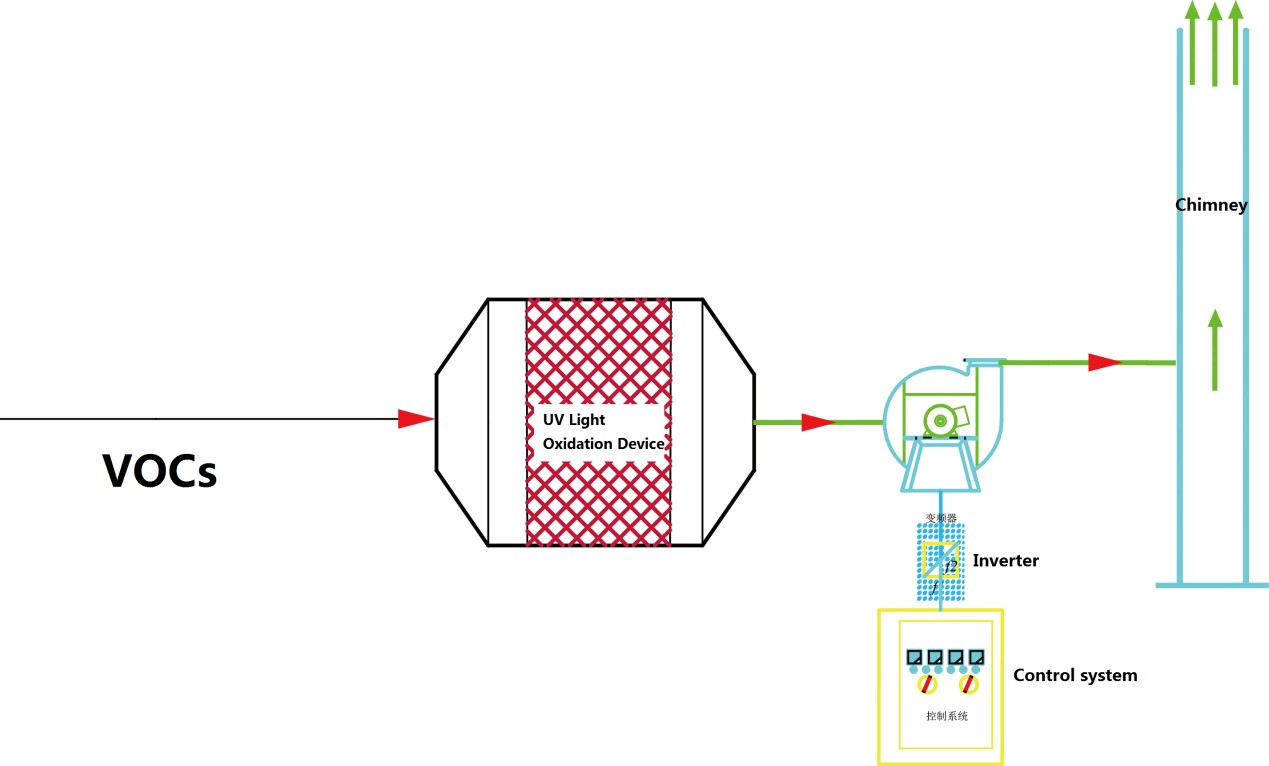

It’s using special high-energy high-ozone UV ultraviolet light beam irradiation of malodorous gases, cracks foul gas such as: butyraldehyde, ammonia, trimethylamine, hydrogen sulfide, methyl sulfide, methyl mercaptan, methyl sulfide, carbon disulfide and styrene, sulfide H2S, VOCs, benzene, toluene molecular bonds, so that the state was free of pollutants molecules and ozone oxidation into small molecules harmless or low-harm compounds such as CO2, H2O and so on. This method has the advantages of high efficiency and no need to add any substance. It is suitable for high concentration and atmospheric volume, stable and reliable operation. It needs no special care and low running cost. Safe and stable performance of equipment, stainless steel, equipment life in more than a decade and so on.

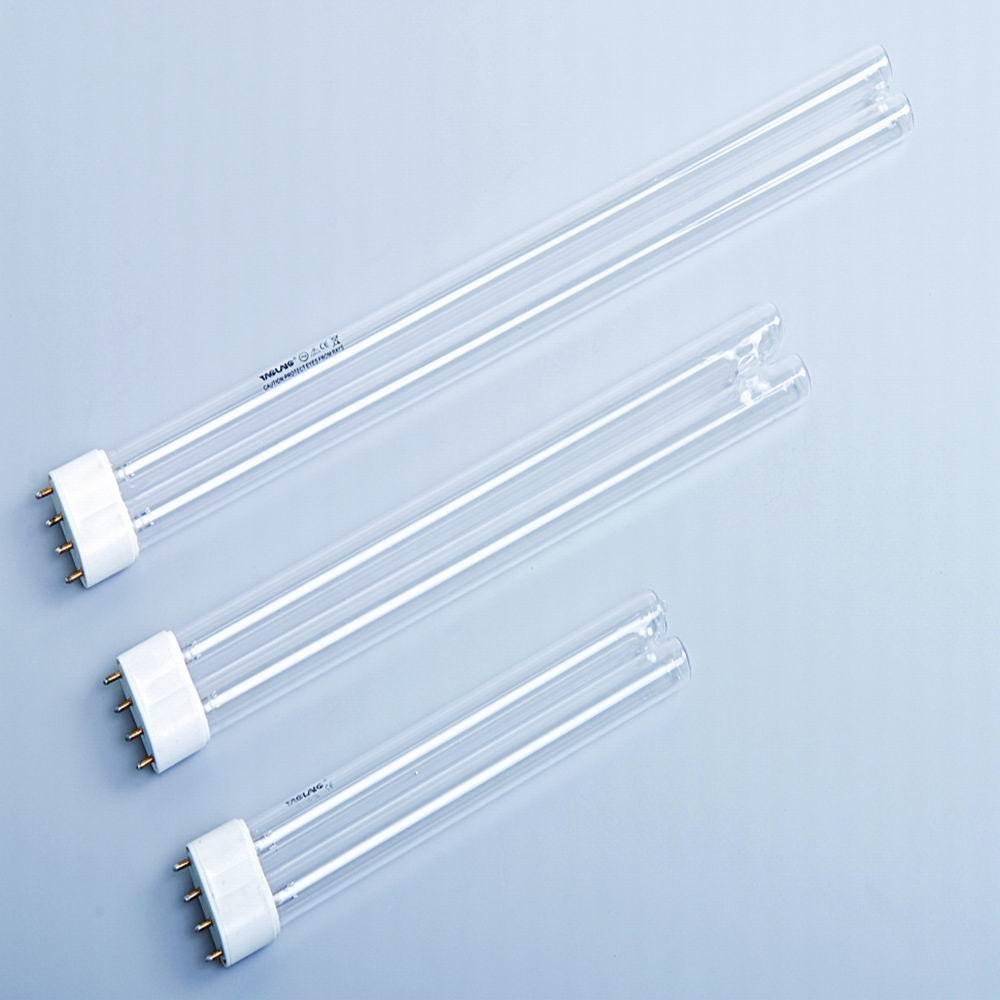

Ultra Violet Lamp :
The Table of Model Selection
| Model | Process air volume | Equipment size | Number of UV lamps | Power |
| 3T-UVP-003 | 3000m³/h | 1800*1500*850mm | 10 | 0.75kw |
| 3T-UVP-005 | 5000m³/h | 2400*1600*850mm | 16 | 1.2kw |
| 3T-UVP-010 | 10000m³/h | 2400*2000*1450mm | 40 | 3kw |
| 3T-UVP-015 | 15000m³/h | 2400*2300*2000mm | 64 | 4.8kw |
| 3T-UVP-020 | 20000m³/h | 2500*2400*2600mm | 88 | 6.6kw |
| 3T-UVP-025 | 25000m³/h | 2700*3050*2600mm | 88 | 6.6kw |
| 3T-UVP-030 | 30000m³/h | 2900*3050*3200mm | 112 | 8.4kw |
| 3T-UVP-035 | 35000m³/h | 3500*2700*2650mm | 176 | 13.2kw |
| 3T-UVP-040 | 40000m³/h | 5200*2700*2650mm | 176 | 13.2kw |
| 3T-UVP-045 | 45000m³/h | 5200*2700*2650mm | 176 | 13.2kw |
| 3T-UVP-050 | 50000m³/h | 5400*2700*2650mm | 176 | 13.2kw |
Technical Features:
High efficiency and low cost
Stable running equipment, low operating costs
Small footprint, easy maintenance and management
Automatic control, safe operation
Safe and reliable equipment without pollution
