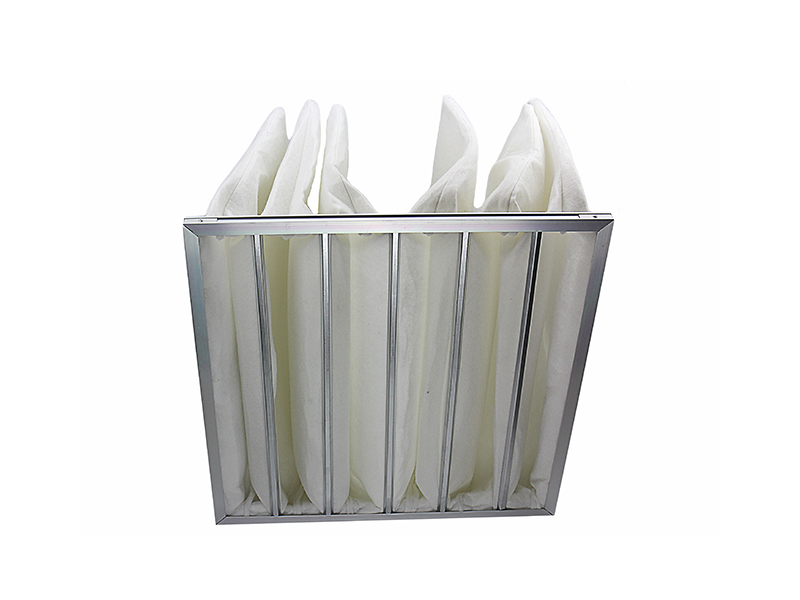

Filter Introduction
General primary filter for central air conditioning, clean Room, high efficiency filter. Mainly suitable for air conditioning applications, such as electronics, optics, hospitals, biopharmaceuticals, machinery manufacturing, petrochemical light industry, commercial construction and other industries.
Product Applications
Electronics，pharmaceutical, hospital, spraying
Type | Outside Dimensions (mm) | Efficiency(%) | Rated Air Flow (m2/h) | Initial Resistance | Final Resistance(Pa) | Pockets | |
(Pa) | (In H2o) | ||||||
SF45 | 292×592×550 490×592×550 592×592×550 | 40-50（Dust-Spot） | 1700 2800 3400 | 60 | 0.24 | 200 | 4 |
55 | 0.22 | 5 | |||||
50 | 0.2 | 6 | |||||
SF65 | 60-70（Dust-Spot） | 80 | 0.32 | 250 | 4 | ||
75 | 0.3 | 6 | |||||
70 | 0.28 | 8 | |||||
SF85 | 292×592×600 490×592×600 592×592×600 | 80-85（Dust-Spot） | 115 | 0.46 | 250 | 5 | |
100 | 0.4 | 8 | |||||
95 | 0.38 | 10 | |||||
SF95 | 90-95（Dust-Spot） | 130 | 0.52 | 300 | 6 | ||
125 | 0.5 | 10 | |||||
115 | 0.46 | 12 | |||||
SF98 | 97-98（Dust-Spot） | 130 | 0.52 | 300 | 6 | ||
125 | 0.5 | 10 | |||||
115 | 0.46 | 12 | |||||
Filter Structure

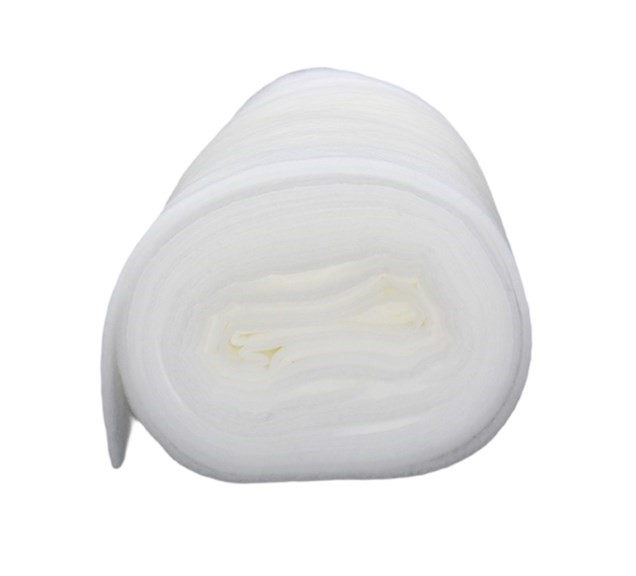

1. Filtering material：Layers of metal filters, interlaced in the inner frame.

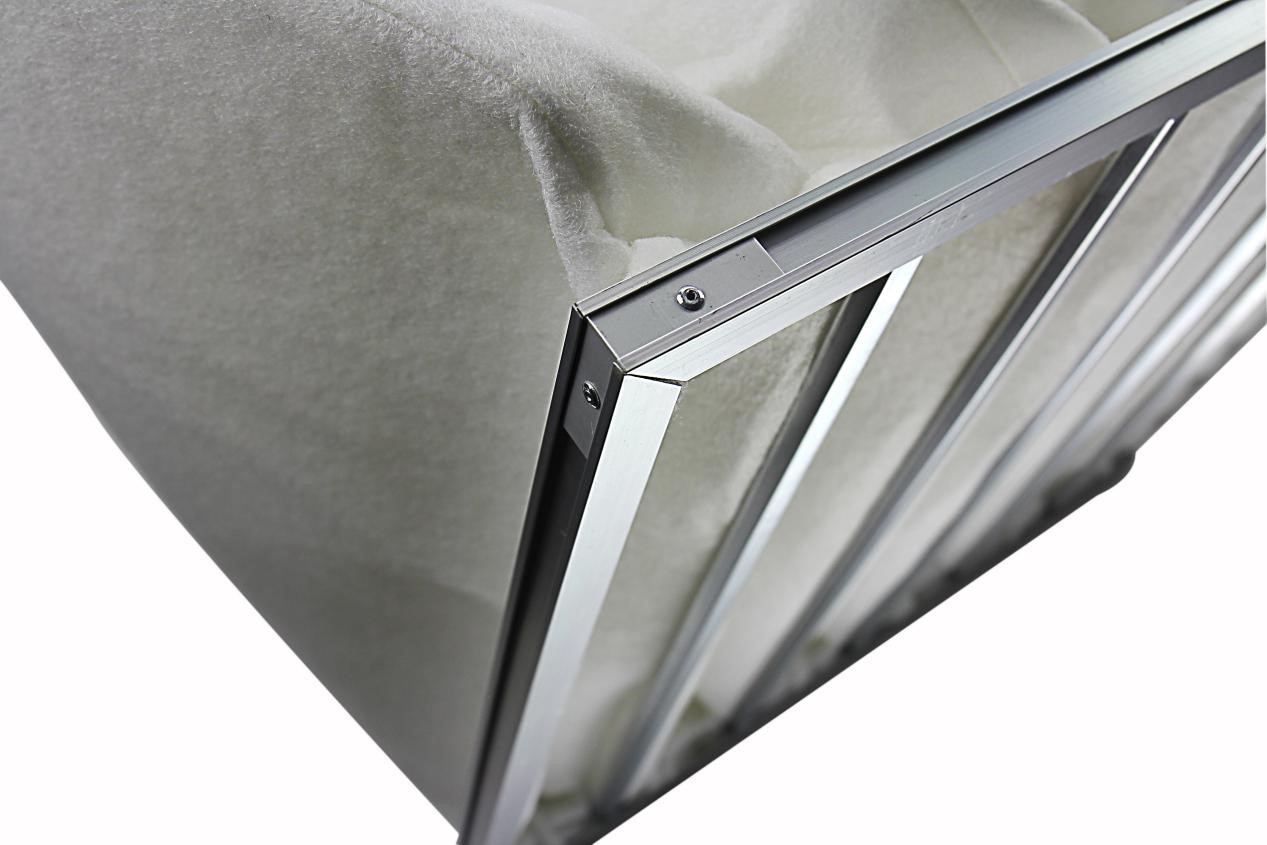

2. Frame plate: galvanized frame, aluminum frame, stainless steel frame.
