Filter Introduction
From single-layer, two or more aluminum mesh, stainless steel mesh for the filter by rolling into a wave-like or tiled, and then the right angle cross each other arranged in a row. Multi-layer expansion of aluminum foil or stainless steel mesh is a different density, the aperture from coarse to fine arrangement, so that the air through the filter several times to change the flow direction, increase its dust collection capacity and efficiency.
Product Applications
Metal mesh filter used in the central air conditioning in addition to hood and primary filtration, special acid, alkali or high temperature ventilation filter. The scope of use includes: semiconductor industry, pharmaceutical industry (FGMP, GMP), circuit board factory, heavy industry, chemical industry, furniture industry, cement industry, department store industry, steel industry, food industry, precision industry, electronics industry, hospital, research unit, Experimental units and so on. Not only for the industry, in the air ventilation or air conditioning intake equipment is the most economical and most convenient solution.
Type | Outside Dimensions(mm) | Efficiency (%) | Rated Air Flow (m3/h) | Initial Resistance | Resistance Humidity (%) | Fireproofing class | |
(Pa) | In H2o | ||||||
Slab | 292*292*22 592*592*22 292*592*22 490*592*22 | 70-85% (Arrestance) | 800 3200 1600 2700 | 25-30 | 0.1-0.12 | 100 | Class2 (UL-900-1996) |

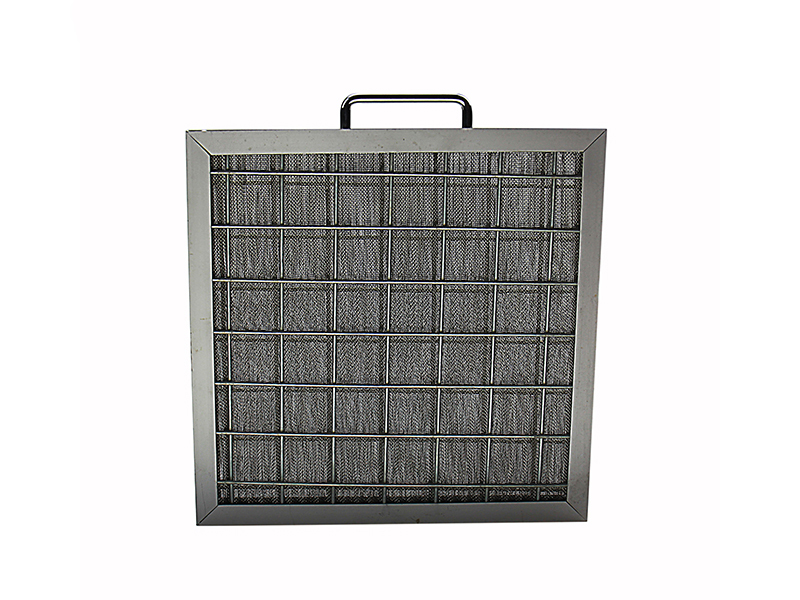

Filter Structure

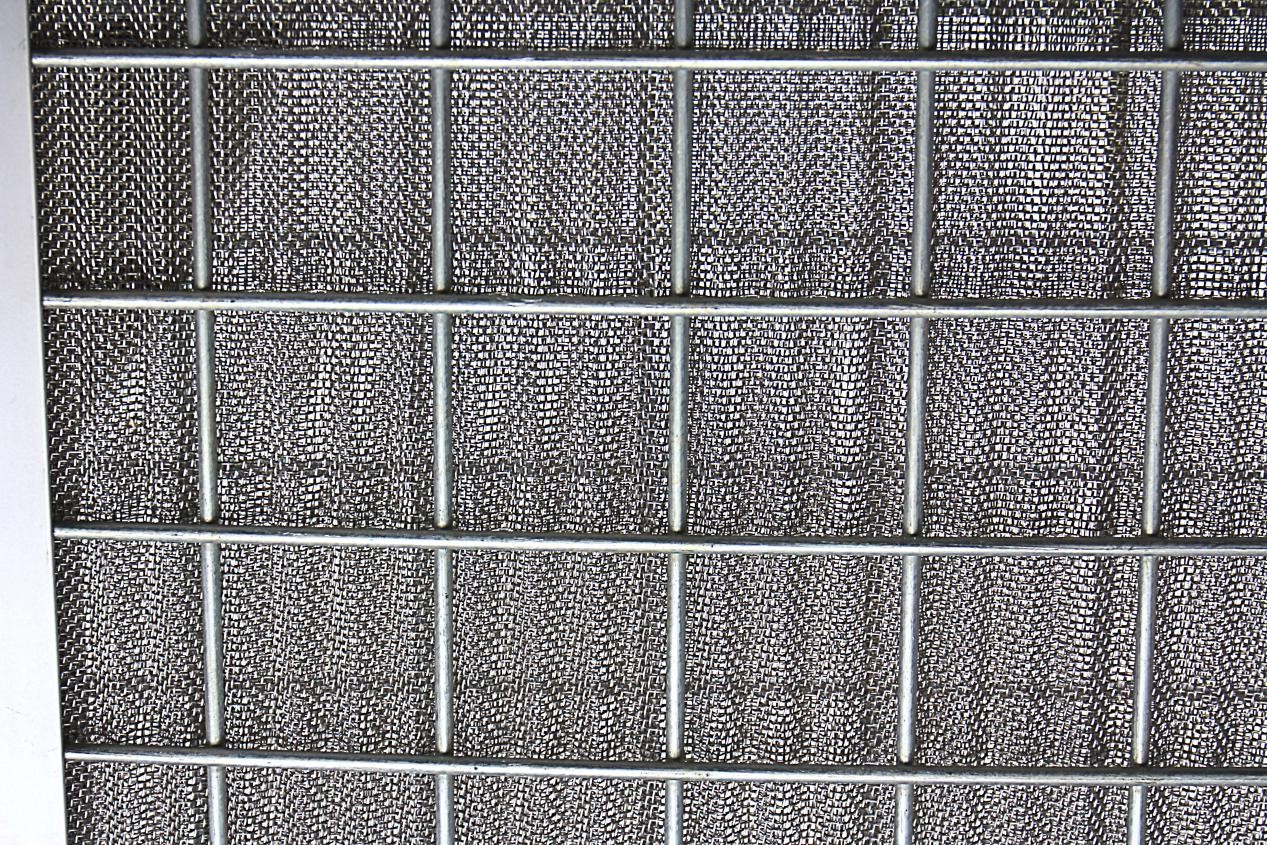

1. Filtering material: Layers of metal filters, interlaced in the inner frame.
2. Frame plate: galvanized frame, aluminum frame, stainless steel frame.
