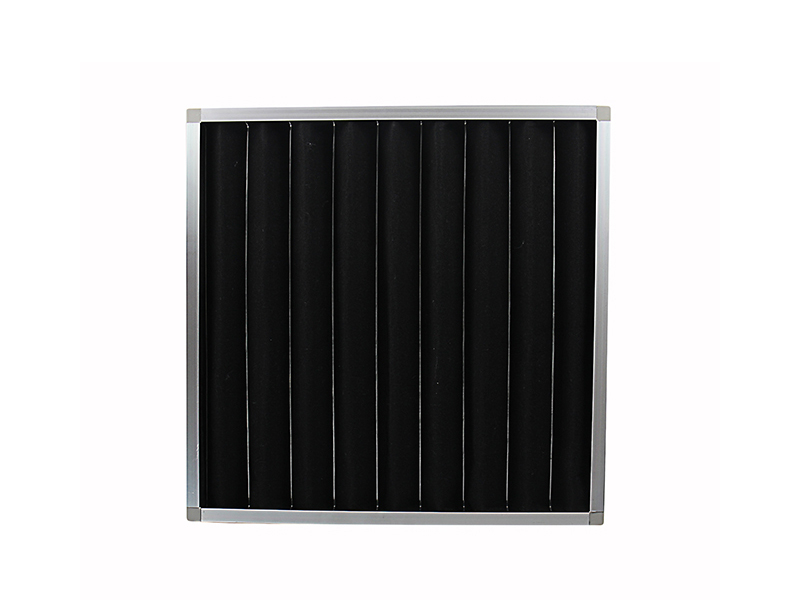

Filter Introduction
Designed for central air conditioning and centralized ventilation systems to remove odor (odor) and harmful gases in the air
According to the actual needs to provide a variety of special activated carbon materials, such as volatile organic compounds, acid, alkaline gases, formaldehyde, mercury vapor, radioactive gases
Type | Outside Dimensions(mm) | Efficiency (％) | Rated Air Flow (m3/h) | Initial Resistance | Resistance Humidity (％) | Fireproofing class | |
(Pa) | InH2o | ||||||
Wave | 292*292*45 592*592*45 292*592*45 490*592*45 | 80-90％ (Arrestance) | 800 3200 1600 2700 | 40-50 | 0.16-0.2 | 100 | Class2 (UL-900-1996) |
Filter Structure
1. Filtering material：Activated carbon filter cotton.
2. Frame plate: galvanized frame, aluminum frame, stainless steel frame.
Filter Introduction
Designed for central air conditioning and centralized ventilation systems to remove odor (odor) and harmful gases in the air
According to the actual needs to provide a variety of special activated carbon materials, such as volatile organic compounds, acid, alkaline gases, formaldehyde, mercury vapor, radioactive gases
Type | Outside Dimensions(mm) | Efficiency (％) | Rated Air Flow (m3/h) | Initial Resistance | Resistance Humidity (％) | Fireproofing class | |
(Pa) | InH2o | ||||||
Wave | 292*292*45 592*592*45 292*592*45 490*592*45 | 80-90％ (Arrestance) | 800 3200 1600 2700 | 40-50 | 0.16-0.2 | 100 | Class2 (UL-900-1996) |

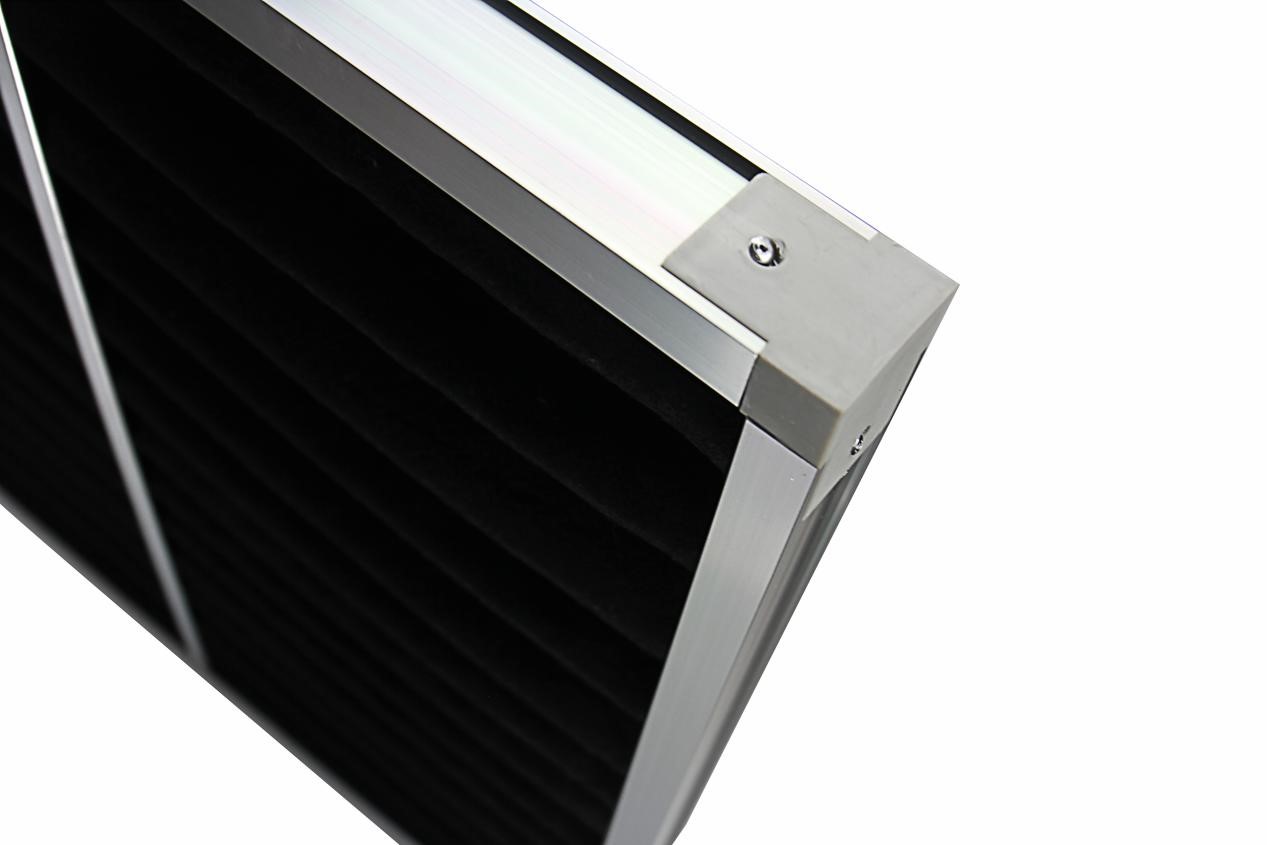

Filter Structure
1. Filtering material：Activated carbon filter cotton.
2. Frame plate: galvanized frame, aluminum frame, stainless steel frame.
