RTO-010
SANTY
8417809090
5000 CMH Accept non-standard customization
heat exchanger , fan, stack，duct ，
| Quantity: | |
|---|---|
Product Introduction

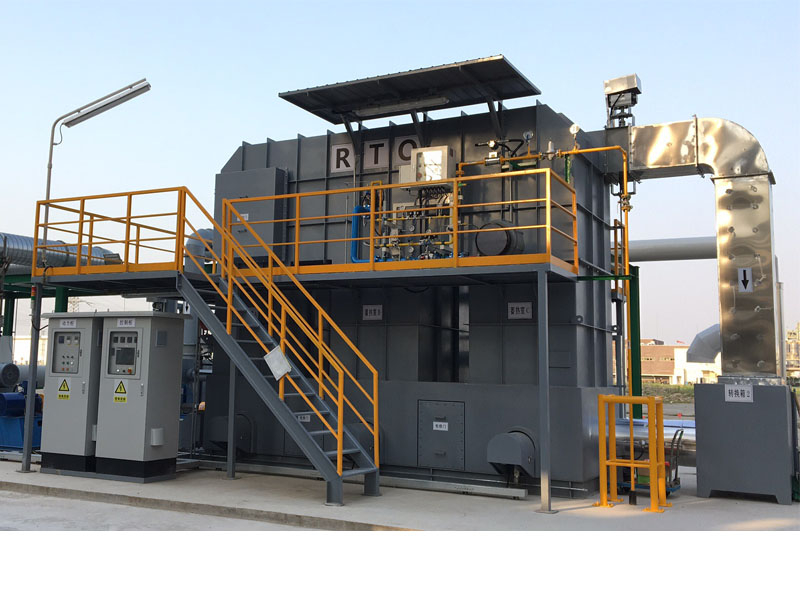

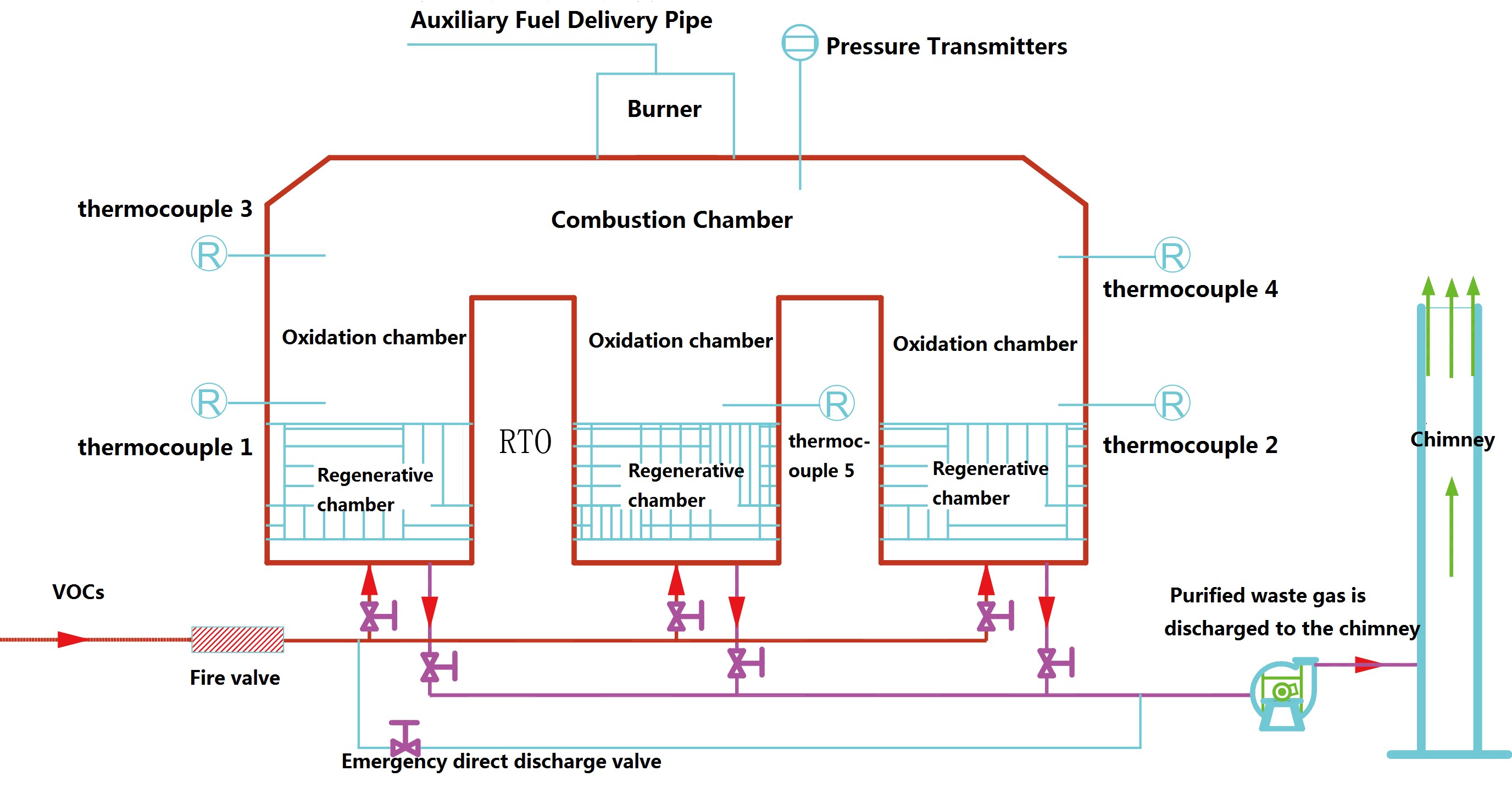

RTO burns organic exhaust gases which using natural gas directly, at a high temperature of 750 to 850 ° C. It decomposes C and H into harmless CO2 and H2O, after the combustion of flue gas through the heat storage ceramic heat energy stored in the heat storage ceramic interior for preheat the organic exhaust gas in order to achieve the standard of flue gas emission of thermal storage ceramics. The inlet and outlet of the exhaust gas can be freely switched by the switching valve to perform the cycle intake treatment, RTO can fully recover heat energy makes the energy consumption reduced greatly.

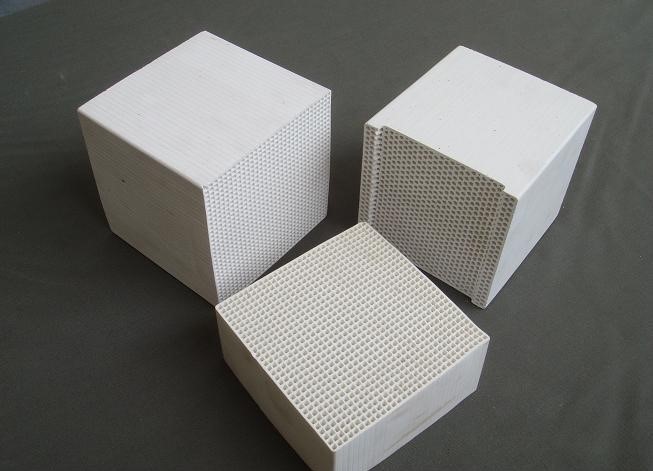

Regenerative Ceramic
The Table of Equipment Selection Parameter
| Model | Gas flow rate | LWH | Burner |
| 3T-RTO-500 | 5000m³/h | 5280*1790*3910mm | 0.25 billion kcal |
| 3T-RTO-1000 | 10000m³/h | 6150*2380*4030mm | 0.55 billion kcal |
| 3T-RTO-1500 | 15000m³/h | 7050*2830*4310mm | 0.75 billion kcal |
| 3T-RTO-2000 | 20000m³/h | 7980*3150*4610mm | 1 billion kcal |
| 3T-RTO-3000 | 30000m³/h | 10650*4260*4950mm | 1.35 billion kcal |
| 3T-RTO-4000 | 40000m³/h | 12560*4720*5460mm | 2 billion kcal |
| 3T-RTO-5000 | 50000m³/h | 14200*5260*5860mm | 2 billion kcal |
Technical Features
Wide range of applications
Processing efficiency of 99%
Safe and reliable
High efficiency of purification
Longer service life
Not sensitive
To VOCs
