Filter Introduction
Glass fiber cotton for a variety of industrial paint filtration, such as furniture factory, automobile factory, electronics industry, pharmaceutical factory, food industry and other industries. Can efficiently absorb the paint generated excess free particles, balance the operating space pressure, is a Typical environmentally friendly materials.
Product Applications
Electronics，pharmaceutical, hospital, spraying
Type | Outside Dimensions(mm) | Efficiency(%) | Rated Air Flow(m2/h) | Initial Resistance | Final Resistance(Pa) | Pockets | |
(Pa) | (In H2o) | ||||||
SF45 | 292×592×550 490×592×550 592×592×550 | 40-50（Dust-Spot） | 1700 2800 3400 | 60 | 0.24 | 200 | 4 |
55 | 0.22 | 5 | |||||
50 | 0.2 | 6 | |||||
SF65 | 60-70（Dust-Spot） | 80 | 0.32 | 250 | 4 | ||
75 | 0.3 | 6 | |||||
70 | 0.28 | 8 | |||||
SF85 | 292×592×600 490×592×600 592×592×600 | 80-85（Dust-Spot） | 115 | 0.46 | 250 | 5 | |
100 | 0.4 | 8 | |||||
95 | 0.38 | 10 | |||||
SF95 | 90-95（Dust-Spot） | 130 | 0.52 | 300 | 6 | ||
125 | 0.5 | 10 | |||||
115 | 0.46 | 12 | |||||
SF98 | 97-98（Dust-Spot） | 130 | 0.52 | 300 | 6 | ||
125 | 0.5 | 10 | |||||
115 | 0.46 | 12 | |||||

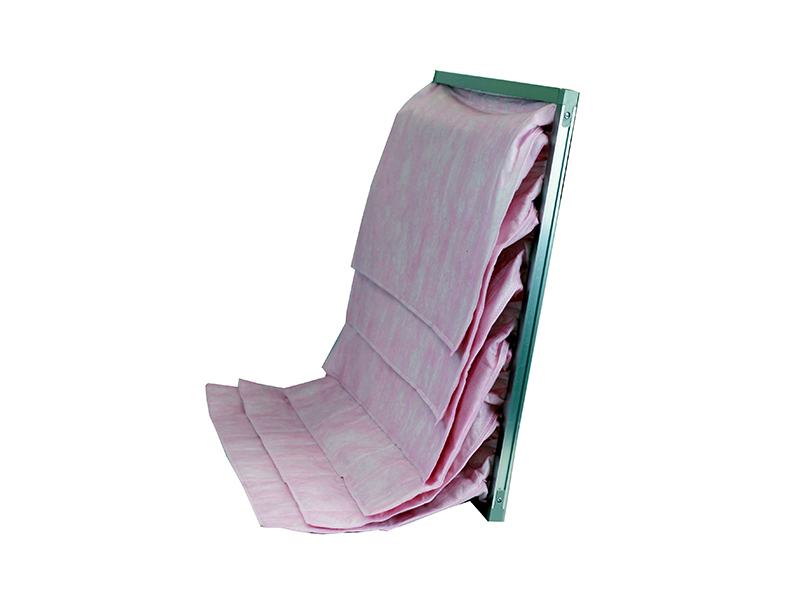

Filter Structure
1. Filtering material：Composite fibre cotton
2. Frame plate: galvanized frame, aluminum frame, stainless steel frame.
