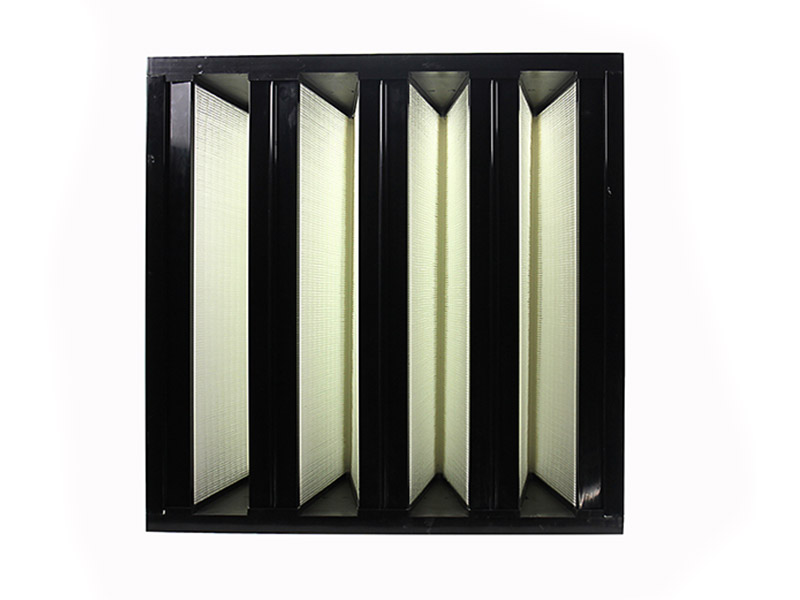

Filter Introduction
1. The air volume is large, suitable for installation in the central air conditioner and air duct, the surface wind speed of 2.7m / s, each 610 × 610 × 292mm standard W filter rated air flow up to 3600m3 / h.
2. High efficiency, the choice of foreign brand-name high-quality glass fiber filter, a larger filter area, clean production environment, can guarantee the VH filter in the rated air volume, 0.3mm particle filtration efficiency of 99.99% (H13) and 95% (H10).
3. Low resistance, VH filter structure is compact and reasonable, filter material, in the rated air volume, the resistance is not higher than 250Pa. Laser scanning count MPPS efficiency: 85%, 99.95%. Filter efficiency level: H10, H13.
4. Large dust capacity, no partition design
5. Construction of strong, to ensure that the performance under the conditions of chaos
6. High air volume, large filter area
Product Application
V-type large air volume efficient filter for the need for high cleanliness of the air conditioning system. V filter can be installed in the central air conditioner to protect the end of the clean room ultra-efficient filter, or installed in the pipeline for a special cleaning requirements of the process of air supply system.
Large air volume ventilation systems, pharmaceuticals, food, hospitals, clean rooms and other filtration systems. Can be used for the middle of the high efficiency filtration system or the front end of the ultra-efficient filtration system pre-filter.
| Type | Outside Dimensions(mm) | Rated Air Flow(m2/h) | Efficiency(%) | Initial Resistance | Final | Bear humidity | ||
| Resistance | ||||||||
| (Pa) | (In H2o) | (Pa) | (In H2o) | |||||
| WMP65 | 287×592×292 | 60-65% | 110 | 0.44 | ||||
| WMP85 | 80-85% | 120 | 0.48 | 250 | 1 | |||
| WMP95 | 592×592×292 | 1700 | 90-95% | 150 | 0.6 | |||
| WMP98 | 3400 | 98% | 160 | 0.64 | 300 | 1.2 | 80% | |
Filter Structure
1. Filtering material：Glass fiber filter paper.
2. Frame plate: galvanized frame, aluminum frame, stainless steel frame.
