HTF-035
SANTY
8421399090
35000 CMH Accept non-standard customization
heat exchanger ， activated carbon , fan, stack，duct ，
| Quantity: | |
|---|---|
Product Introduction

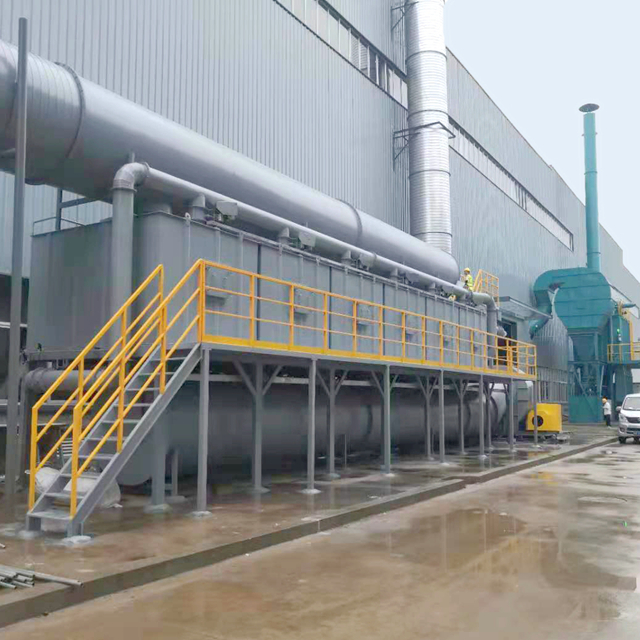

Organic gas adsorption - catalytic purification device is our company accumulated years of experience in organic waste gas governance， the successful development of highly efficient energy-saving, no secondary pollution of the new series of products.Applicable to low concentrations (20-1000mg / m³),In the high-volume (10,000 -12 million) of organic waste gas governance.System principle:Mainly based on the porous activated carbon adsorption performance and activated carbon in the high temperature performance of the desorption of the organic matter were adsorption and desorption, desorbed organic matter into the catalytic combustion furnace at 200-300 ℃ for catalytic combustion of C, H compounds for the oxidation of CO2 and H2O, reach the gas discharge standards.
The Table of Model Selection
| Device model | Air volume（m³/h） | System size |
| Length × width (m) | ||
| 3T-HTC-010 | 10000 | 10m*4m |
| 3T-HTC-020 | 20000 | 13m*4m |
| 3T-HTC-040 | 40000 | 15m*5m |
| 3T-HTC-050 | 50000 | 18m*6m |
| 3T-HTC-100 | 100000 | 22m*6m |
| 3T-HTC-150 | 1500000 | 25m*8m |
Technical Features:
