HXT-Q002
SANTY
8421399090
20000 CMH Accept non-standard customization
pressure gauge, fan, ladders,electric control cabinet, stack etc.
| Quantity: | |
|---|---|
Product Introduction

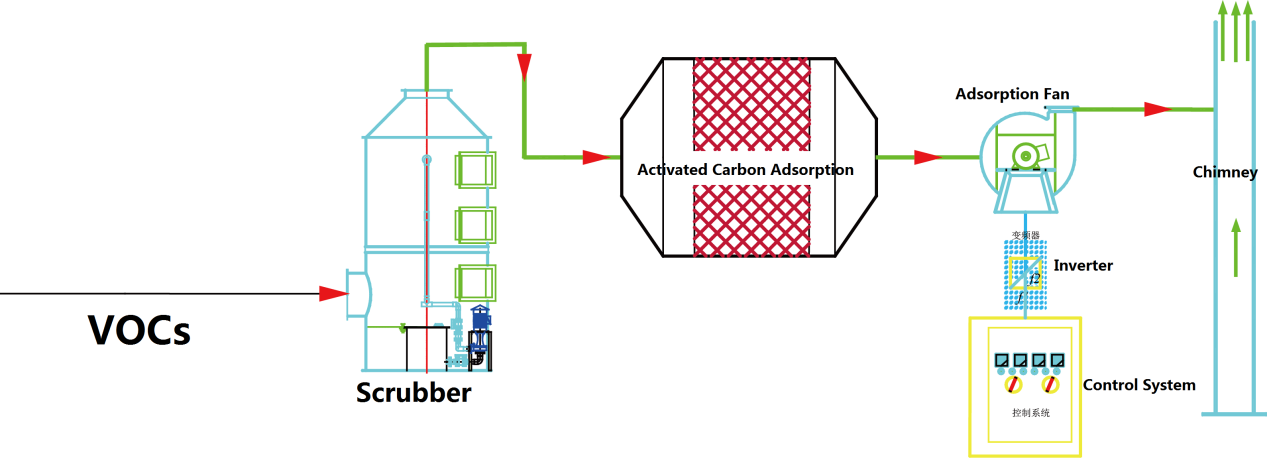

Activated carbon is a very small carbon particles, it has a large surface area and there are smaller holes in the carbon particles- the capillary. Activated carbon adsorption is the essence of use activated carbon adsorption characteristics of low concentrations of high volume air in the organic solvent adsorption to activated carbon.Activated carbon adsorption method is mainly used for the removal of concentration of gaseous pollutants.

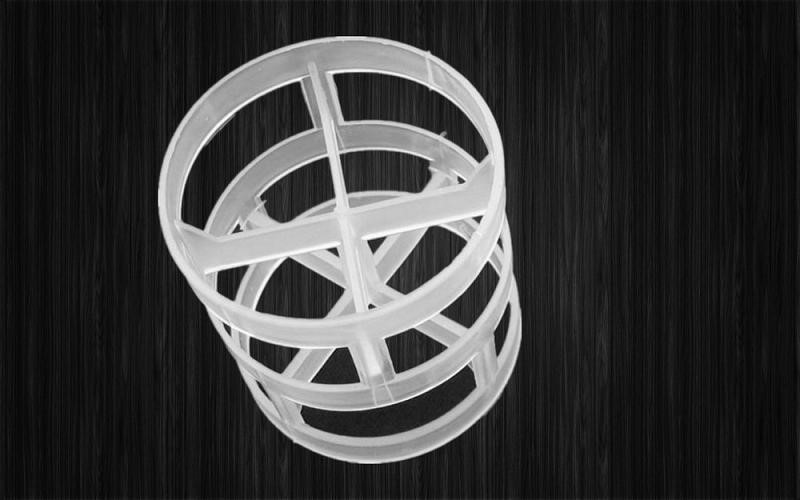

Padding:

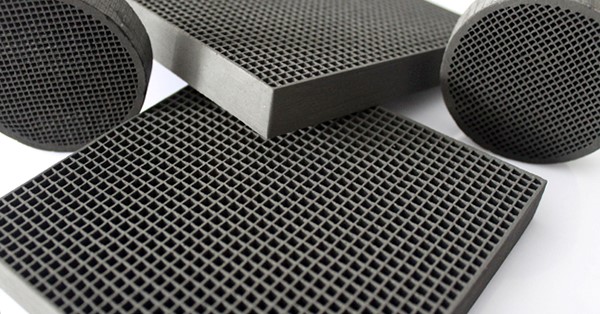

Honeymoon Activated Carbon:

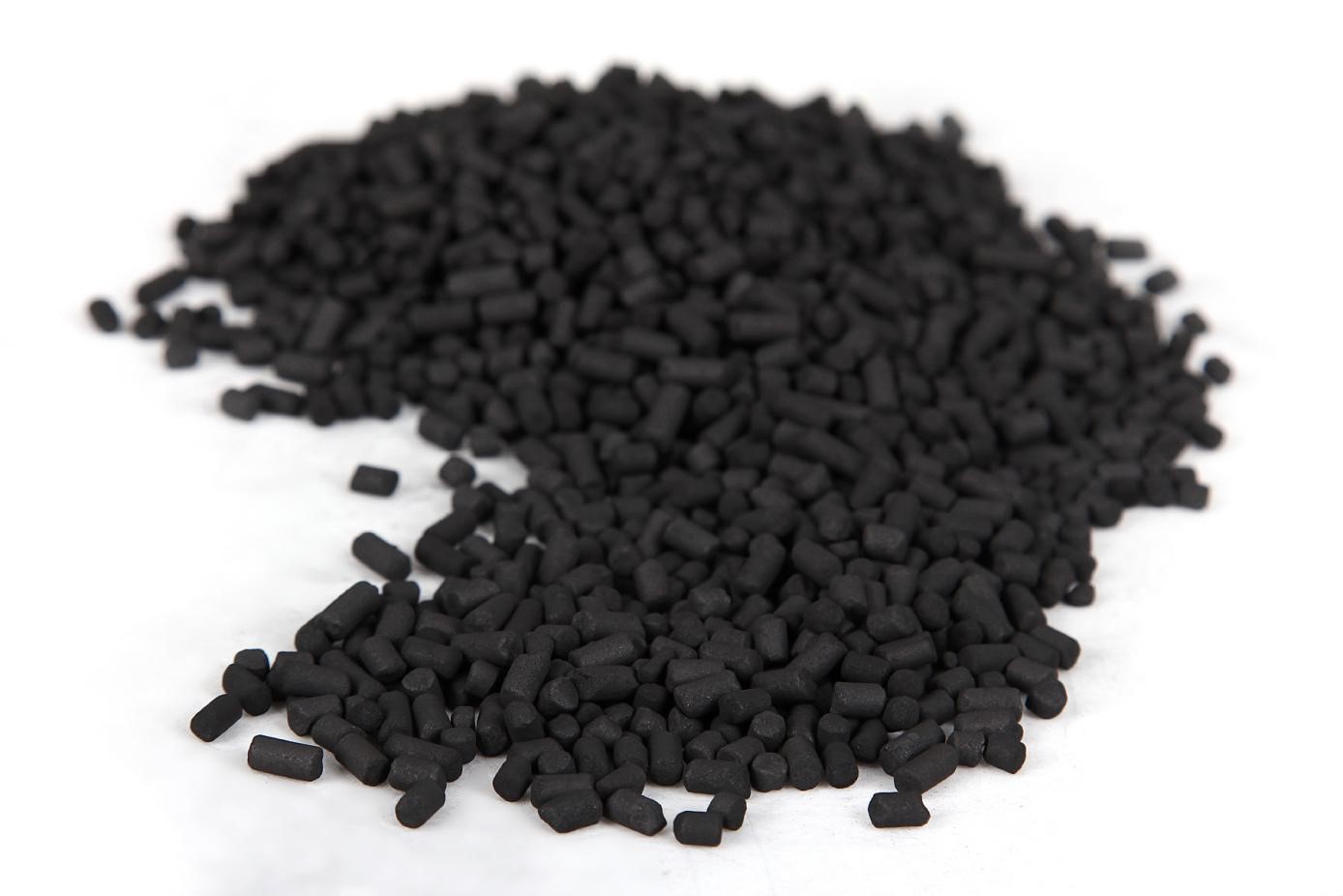

Columnar Activated Carbon：
The Table of Equipment Selection
| Device model | Air volume（m³/h） | System size |
| Length × width (m) | ||
| 3T-HTC-010 | 10000 | 10m*4m |
| 3T-HTC-020 | 20000 | 13m*4m |
| 3T-HTC-040 | 40000 | 15m*5m |
| 3T-HTC-050 | 50000 | 18m*6m |
| 3T-HTC-100 | 100000 | 22m*6m |
| 3T-HTC-150 | 150000 | 25m*8m |
Technical Features:
High adsorption efficiency
Purification efficiency≥95%
Small footprint easy to manage low cost
Automation easy to use safety
Fully enclosed indoor and outdoor
Product Introduction
Activated carbon is a very small carbon particles, it has a large surface area and there are smaller holes in the carbon particles- the capillary. Activated carbon adsorption is the essence of use activated carbon adsorption characteristics of low concentrations of high volume air in the organic solvent adsorption to activated carbon.Activated carbon adsorption method is mainly used for the removal of concentration of gaseous pollutants.
Padding:
Honeymoon Activated Carbon:
Columnar Activated Carbon：
The Table of Equipment Selection
| Device model | Air volume（m³/h） | System size |
| Length × width (m) | ||
| 3T-HTC-010 | 10000 | 10m*4m |
| 3T-HTC-020 | 20000 | 13m*4m |
| 3T-HTC-040 | 40000 | 15m*5m |
| 3T-HTC-050 | 50000 | 18m*6m |
| 3T-HTC-100 | 100000 | 22m*6m |
| 3T-HTC-150 | 150000 | 25m*8m |
Technical Features:
High adsorption efficiency
Purification efficiency≥95%
Small footprint easy to manage low cost
Automation easy to use safety
Fully enclosed indoor and outdoor
