Product Introduction

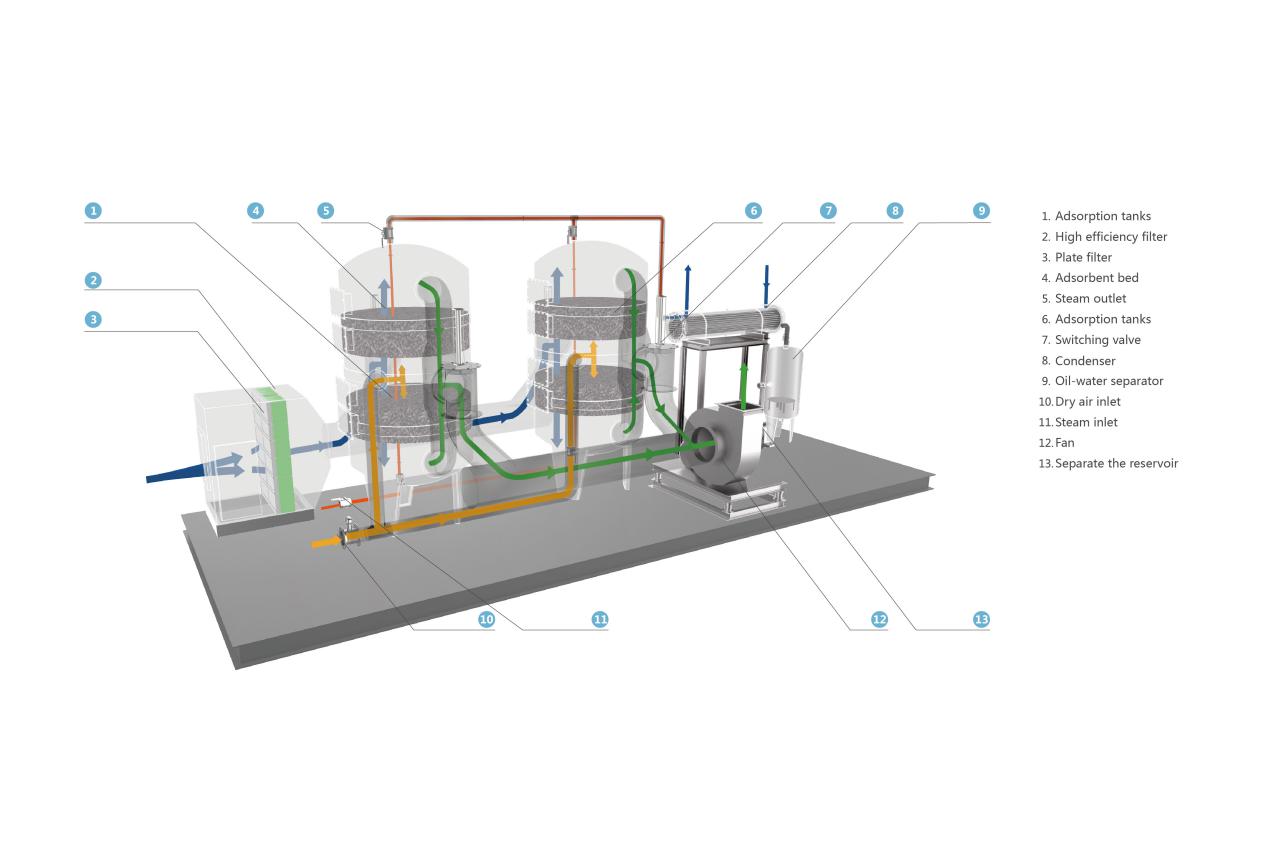

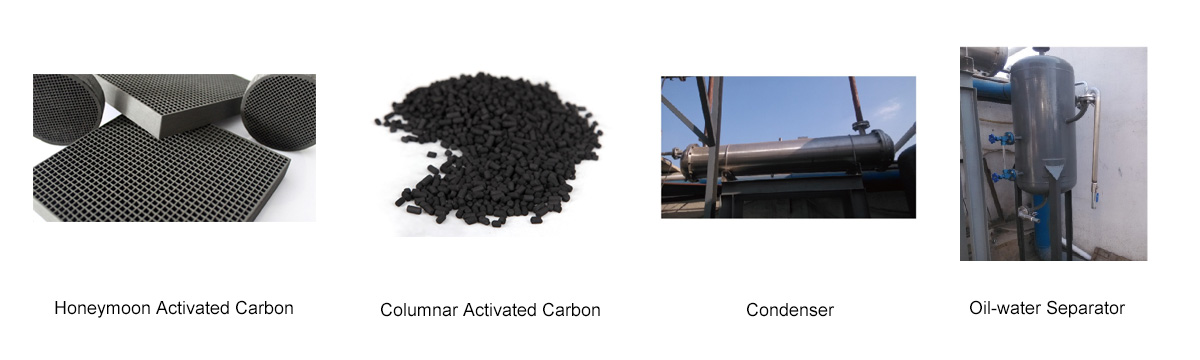

The equipment is mainly composed of the activated carbon adsorption desorption tank, pneumatic valves, fans, chimneys, dry- type filters, dry fans, condensers, oil- water separator, and other components.
System uses low energy consumption, use manufacturers of steam or small steam generator can fulfil requirements, and the whole equipment running time is short, desorption effectiveness can reach 80%- 90%, desorption gas into the condensing system, through the oil- water separated and reused, save energy and protect the environment to achieve the effect of resource recycling.
The Table of Model Selection
| Device model | Air volume（m³/h） | System size |
| Length × width (m) | ||
| 3T-HTC-010 | 10000 | 10m*4m |
| 3T-HTC-020 | 20000 | 13m*4m |
| 3T-HTC-040 | 40000 | 15m*5m |
| 3T-HTC-050 | 50000 | 18m*6m |
| 3T-HTC-100 | 100000 | 22m*6m |
| 3T-HTC-150 | 1500000 | 25m*8m |
Technical Features:
