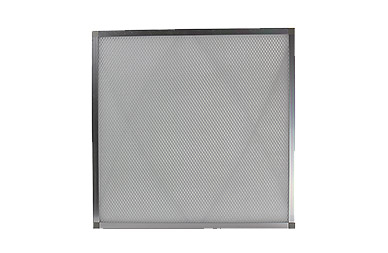

Filter Introduction
The use of early effect filter cotton (non-woven) tile in the frame, the filter with double-sided spray square grid fixed; frame is usually aluminum or galvanized frame; size is limited, can be tailored.
Product Applications
In the environment is limited and the use of large air environment,
Used in air conditioning system, the initial filter, multi-stage filtration system pre-filter,
For the effect, high efficiency filter before the pre-filter, to extend the life of the latter part of the filter.
| Type | Outside Dimensions(mm) | Efficiency | Rated Air Flow | Initial Resistance | Resistance | Fireproofing | |
| (％) | (m3/h) | Humidity | class | ||||
| (Pa) | In H2o | (％) | |||||
| Slab | 292*292*22 | 70-85％ | 800 | 25-30 | 0.1-0.12 | 100 | Class2 |
| 592*592*22 | (Arrestance) | 3200 | (UL-900-1996) | ||||
| 292*592*22 | 1600 | ||||||
| 490*592*22 | 2700 | ||||||
Filter Structure
1. Filtering material：Initial non-woven fabric filter cotton.
2. Frame plate: galvanized frame, aluminum frame, stainless steel frame.
